Mueller® H-17506 Flanged Tee.
Catalog number: H-17506
Features:
- Sizes – 3", 4", 6", 8"
- For use on steel pipe only---bottom of tee is contoured to fit pipe one size larger than nominal size of tee
- Also available with flat bottom (no contour/no bevel) using H-17506-99000
- For inlet beveled but not contoured, use H-17506-99001
- O-ring sealed steel (ASTM A216 GR. WCB) Completion Plug with equalizing valve
- Flange, Completion Cap are forged steel (ASTM A105)
- Tee body is forged steel (ASTM A234, Grade WPB)
- Class 300 flange complies with dimensional requirements of ANSI B16.5
- 720 psig** (4136 kPa) maximum working pressure
Pipe Dimension:
Size* of Line Stopper Fitting | Size of pipe tee Is Contoured For | Outside Diameter of Shell Cutter Required | Outside Diameter of pipe | pipe Dimensions | ||
Maximum Wall thickness | Minimum Wall thickness | Maximum Inside Diameter | ||||
3" | 4" | 2-1/2" | 3.500" | No limit | .188" | 3.124" |
4" | 6" | 3-1/2" | 4.500" | No limit | .188" | 4.124" |
6" | 8" | 5-1/2" | 6.625" | .432" (sch. 80) | .250" | 6.125" |
8" | 10" | 7-1/2" | 8.625" | .406" (sch. 60) | .250" | 8.125" |
Drilling/Stopping Machine combinations that can be used to install and stop-off H-17506 tees:
Drilling Machine | Line Stopper Units | |||
Unit No.2 | Unit No.3 | Unit No.3SW | Unit No. 3SW-500 | |
H-17506 | ||||
C1-36 | 3" and 4" | 6" and 8" | 4", 6" and 8" | 4", 6" and 8" |

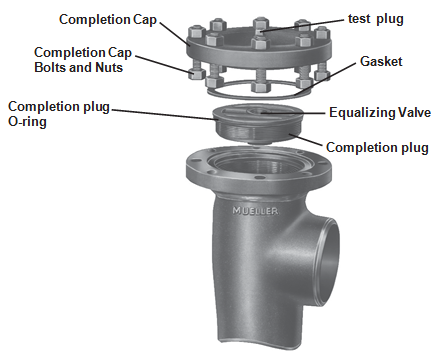

Replacement parts:
Fitting Size* | Completion Cap | test plug | Completion Cap Bolts and Nuts (No. Required) | Completion Cap Gasket | Completion plug Assembly | O-ring Seal |
3" | 64203 | 64134 | 43912 (8) | 43959 | 83489 | 43922 |
4" | 64204 | 64134 | 43911 (8) | 36377 | 83490 | 43917 |
6" | 64205 | 64134 | 500894 (12) | 62945 | 83491 | 79895 |
8" | 64206 | 64134 | 43908 (12) | 63057 | 83492 | 79020 |
*Nominal
