Mueller® H-17505 Flanged Tee.
Catalog number: H-17505
Features:
- Sizes – 3", 4", 6", 8"
- For use on steel pipe only---bottom of tee is contoured to fit pipe one size larger than nominal size of tee
- O-ring sealed cast iron (ASTM A126 CL. B) Completion Plug with equalizing valve
- Completion Cap cast iron (ASTM A126 CL. B)
- Flange is forged steel (ASTM A105)
- Tee body is forged steel (ASTM A234, Grade WPB)
- Also available with flat bottom (non contoured) using H-17505-99000
- Class 150 flange complies with dimensional requirements of ANSI B16.5
- 275 psig** (1896 kPa) maximum working pressure
Pipe Dimension:
Size* of Flanged Fitting | Size of pipe tee Is Contoured For | Outside Diameter of Shell Cutter Required | Outside Diameter of pipe | pipe Dimensions | ||
Maximum Wall thickness | Minimum Wall thickness | Maximum Inside Diameter | ||||
3" | 4" | 2-1/2" | 3.500" | No limit | .188" | 3.124" |
4" | 6" | 3-1/2" | 4.500" | No limit | .188" | 4.124" |
6" | 8" | 5-1/2" | 6.625" | .432" (sch. 80) | .250" | 6.125" |
8" | 10" | 7-1/2" | 8.625" | .406" (sch. 60) | .250" | 8.125" |
Drilling/Line Stopping Machine combinations that can be used to install and stop-off H-17505 tees:
DrillingMachine | Line Stopper Units | |||
Unit No.2 | Unit No. 3 | Unit No. 3SW | Unit No. 3SW-500 | |
H-17505 | ||||
C1-36 | 3" and 4" | 6" and 8" | 4", 6" and 8" | 4", 6" and 8" |

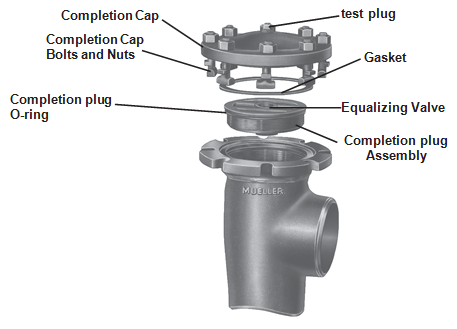

Replacement parts:
Fitting Size* | CompletionCap | testplug | CompletionCapBoltsandNuts(No. Required) | CompletionCap Gasket | Completionplug Assembly | O-ring Seal |
3" | 36590 | 64134 | 503708 (6) | 43959 | 83484 | 43922 |
4" | 36592 | 64134 | 36731 (8) | 36377 | 83485 | 43917 |
6" | 36609 | 64134 | 36446 (8) | 62945 | 83487 | 79895 |
8" | 36625 | 64134 | 503709 (8) | 63094 | 83493 | 79020 |
*Nominal
Equipment required to install and stop-off H-17505 Flanged tee:
ToolName | Quantity Required | Line Stopper Unit No. 2 | Line Stopper Unit No. 3 | ||
3" H-17505 | 4" H-17505 | 6" H-17505 | 8" H-17505 | ||
Drilling Machine | 1 | C1-36 | C1-36 | C1-36 | C1-36 |
Stopping Machine | 2 | H-17235 | H-17235 | H-17335 | H-17335 |
Gate Valve | 2 | 88611 | 88611 | 83953 | 83953 |
Valve Adapter | 2 | 36461 | - | 501223 | - |
Drilling Machine Adapter | 1 | 36343 | 36343 | 36545 | 89632 |
Cutter Arbor | 1 | 88338 | 88340 | - | - |
Cutter Hub | 1 | - | - | 63978 | 33996 |
Shell Cutter | 1 | 2-1/2" 33518 | 3-1/2" 33519 | 5-1/2" 36004 | 7-1/2" 33999 |
Pilot Drill | 1 | 33976 | 33976 | 36005 | 64244 |
Expanding Rubber Stopper | 1 | 83504 | 83506 | 682337 | 682339 |
Stopper Adapter | 1 | - | - | 528162 | 528162 |
Completion Machine | 1 | H-17246 (optional) | H-17246 (optional) | H-17345 | H-17345 |
Plug Alignment Tool | 1 | 83522 | 83522 | 83519 | 83519 |
Plug Inserting Tool | 1 | 83520 | 83520 | 83517 | 83517 |
Plug Extracting Tool | 1 | 83521 | 83521 | 83518 | 83518 |
Completion Plug Wrench | 1 | 36404 | 36404 | 36424 | 36424 |
Inspection Flange | 1 | H-17619 | H-17619 | H-17619 | H-17619 |
Tool Name | Qty.Req'd. | Line Stopper Unit No. 3SW | Line Stopper Unit No. 3SW-500 | ||||
4" | 6" | 8" | 4" | 6" | 8" | ||
H-17505 | H-17505 | H-17505 | H-17505 | H-17505 | H-17505 | ||
Drilling Machine | 1 | C1-36 | C1-36 | C1-36 | C1-36 | C1-36 | C1-36 |
Stopping Machine | 2 | H-17340 | H-17340 | H-17340 | - | - | - |
Gate Valve | 2 | 83953 | 83953 | 83953 | 83721 | 83721 | 83721 |
Valve Adapter | 2 | 83513 | 501223 | - | 501361 | 63205 | 63193 |
Drilling Machine Adapter | 1 | 36545 | 36545 | 89632 | 89341 | 89341 | 89341 |
Cutter Arbor | 1 | 88340 | - | - | 88340 | - | - |
Cutter Hub | 1 | - | 63978 | 33996 | - | 63978 | 33996 |
Shell Cutter | 1 | 3-1/2" 33519 | 5-1/2" 36004 | 7-1/2" 33999 | 3-1/2" 33519 | 5-1/2" 36004 | 7-1/2" 33999 |
Pilot Drill | 1 | 33976 | 36005 | 64244 | 33976 | 36005 | 64244 |
Expanding Rubber Stopper | 1 | 83506* | 682337* | 682339* | - | - | - |
Stopper Adapter | 1 | 528161 | - | - | - | - | - |
Completion Machine | 1 | H-17346 | H-17346 | H-17346 | H-17347 | H-17347 | H-17347 |
Plug Alignment Tool | 1 | 83774 | 83250 | 83250 | 83774 | 83250 | 83250 |
Plug Inserting Tool | 1 | 83772 | 83237 | 83237 | 83772 | 83237 | 83237 |
Plug Extracting Tool | 1 | 83773 | 83238 | 83238 | 83773 | 83238 | 83238 |
Completion Plug Wrench | 1 | 36404 | 36424 | 36424 | 36404 | 36424 | 36424 |
Inspection Flange | 1 | H-17619 | H-17619 | H-17619 | H-17619 | H-17619 | H-17619 |
† Furnished with Completion Machine.
* 4" and 6" stopping pressure limited to 250 psig. 8" stopping pressure limited to 200 PSIG.
