Mueller® H-18208 Perfsafe® Tee.
Catalog number: H-18208
Features:
- Weld x extended for compression coupling - size 500
- Sizes* – 3/4" x 3/4"
- Mueller GAs-PHusE® Device size 500
- Forged steel body AsTM A105
- steel completion cap AIsI 12L14
- steel perforator - specially heat treated - 3/8" tip
- Weld inlet
- Extended outlet prepared for butt weld same size as outlet and can be used to attach a compression coupling
- 1440** psig (9930 kPa)
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments. Refer to charts on following pages.

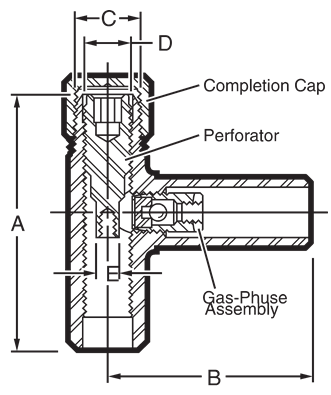

Dimensions:
Dimensions | Size* of Perfsafe Tee |
3/4" x 3/4" | |
A | 4" |
B | 3-3/16" |
C | 1" |
D | 49/64" |
E | 3/8" |
Perforator tip size/hex drive size | 3/8" / .385" |
Maximum wall thichness of pipe that perforator will cut | .281" |
Replacement Parts:
Replacement Parts | Size* of Perfsafe Tee |
3/4" x 3/4" | |
Completion Cap | 504415 |
GAs-PHusE assembly | 580834 |
Perforator | 505205 |

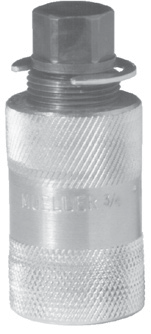

Mueller NO-BLO® Autoperf® Operating Wrench
H-18090 Mueller NO-BLO Autoperf operating wrenches are used to perforate holes in mains under pressure. The entire operation is done using Mueller NO-BLO Methods with no blowing of gas. 1200 psig maximum working pressure.
Wrench size*: 3/4" x 3/8"
Compact Crimping Tool
H-18097 Compact Crimping Tool for 3/4” Autoperf Tees is designed to be used before the main is perforated, therefore, this tool is not pressure rated allowing it to be less bulky and lighter weight than the H-18092 tool.
Crimping tool size: 3/4"
