Mueller® H-18702 Autoperf® Tee.
Catalog number: H-18702
Features:
- Weld x 5/8" Mueller 112® - 3/8" Tip
- Sizes* – 3/4" x 5/8"
- Forged Steel Body ASTM A105
- Steel Completion Cap AISI C12L14
- Steel Perforator specially heat treated - 3/8" tip
- Weld inlet
- Mueller 112® Compression Connection Fittings are rated Category 1 for PE pipe
- Mueller 112® Compression Connection outlet for 5/8" O.D. CTS plastic tubing - furnished with insert for .090" wall tubing
- 100** psig (689 kPa)
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments.

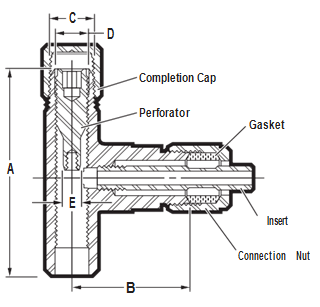

Dimensions:
Dimensions | Size* of AUTOPERF Tee |
3/4" x 5/8" | |
A | 4" |
B | 3-15/32" |
C | NPT |
D | 49/64" |
E | .385" |
Perforator Tip size / hex drive size | 3/8" / .385" |
Maximum wall thickness of pipe that perforator will cut | .281" |
Replacement Parts:
Replacement Parts | Size* of AUTOPERF Tee |
1/2" x 5/8" | |
Completion Cap | 502199 |
Perforator | 505205 |
No additional lubrication of any kind is needed to prepare the perforator for use before installation.
