Mueller® H-18194 Autoperf® Tee.

Catalog number: H-18194

Features:

  • Weld x 1/2" Mueller 112® - 5/16" TIP
  • Sizes* – 1/2" x 5/8"
  • Forged Steel Body ASTM A105
  • Steel Completion Cap AISI 12L14
  • Steel Perforator specially heat treated - 5/16" tip
  • Weld inlet
  • Mueller 112® Compression Connection Fittings are rated Category 1 for PE pipe.
  • Mueller 112® Compression Connection outlet for 1/2" CTS plastic tubing - furnished with insert for .090" wall tubing
  • 100** psig (689 kPa)
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments.
Note: Other tees with 112 outlet are shown on pages 6.10 and 6.11

_
Catalog PDF

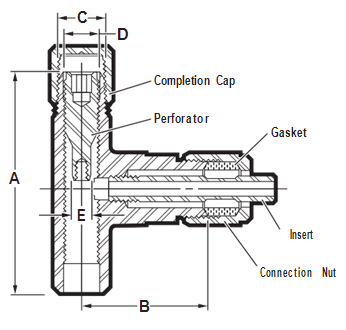

Dimensions:

Dimensions

Size* AUTOPERF Tee

1/2" x 5/8"

A

3-3/4"

B

2-9/64"

C

3/4"

D

37/64"

E

5/16"

Perforator Tip size / hex drive size

5/16" / .317"

Maximum wall thickness of pipe that perforator will cut

.281"

Replacement Parts:

Replacement Parts

Size* of AUTOPERF Tee

1/2" x 5/8"

Completion Cap

503142

Perforator

505924



No additional lubrication of any kind is needed to prepare the perforator for use before installation.

*First size is size of inlet, second is size of outlet.
