Mueller® NO-BLO® H-18102 Autoperf® Tee.
Catalog number: H-18102
Features:
- Weld x weld - 3/8" tip
- Sizes* – 1/2" x 1/2", 3/4" x 3/4", 3/4" x 1"
- Forged Steel Body ASTM A105
- Steel Completion Cap AISI 12L14
- Steel Perforator specially heat treated - 3/8" tip
- Weld inlet
- Outlet prepared for butt weld same size as outlet and socket weld one size smaller than outlet
- 1440** psig (9930 kPa)
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments.

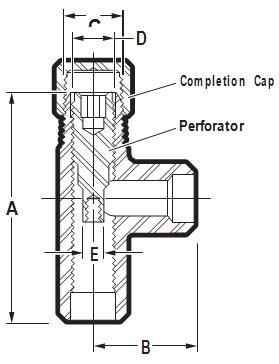

Dimensions:
Dimensions | Size* of AUTOPERF Tee | ||
1/2" x 1/2" | 3/4" x 3/4" | 3/4" x 1" | |
A | 3-3/4" | 4" | 4" |
B | 1-3/4" | 1-3/4" | 2-1/2" |
C | 3/4" | 1" | 1" |
D | 37/64" | 49/64" | 49/64" |
E | 3/8" | 3/8" | 3/8" |
Perforator Tip size / hex drive size | 3/8" / .385" | 3/8" / .385" | 3/8" / .385" |
Maximum wall thickness of pipe that perforator will cut | .250" | .281" | .281" |
Replacement Parts:
Replacement Parts | Size* of AUTOPERF Tee | ||
1/2" x 1/2" | 3/4" x 3/4" | 3/4" x 1" | |
Completion Cap | 525387 | 502199 | 502199 |
Perforator | 505925 | 505205 | 505205 |
No additional lubrication of any kind is needed to prepare the perforator for use before installation.
*First size is size of inlet, second is size of outlet.
