Mueller® H-11475 Brisco™ By Pass Meter Valve (for customer side) - 100 psig.
Catalog number: H-11475
Features:
- Size* – 1"
- Meets the test requirements specified in ASME B16.33
- Iron body valve
- Tamper proof design
- O-ring sealed key
- Special lubrication system – can be re-lubricated under pressure
- Exclusive tamper-proof by pass feature
- Available in black (as cast) or galvanized finish
- 100 psig (689 kPa)
†All meter valves are sold in complete box quantity only.
Demonstration Videos

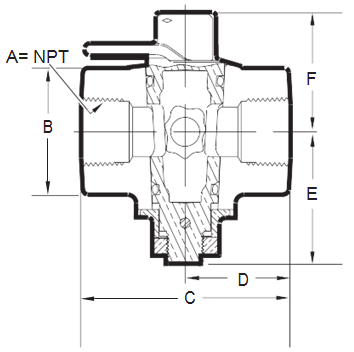

Mueller® H-11475 Brisco™ By Pass Meter Valve Dimensions:
Dimension | Valve Size* |
1" | |
A | 1" |
B | 1-15/16" |
C | 3-53/64" |
D | 1-29/32" |
E | 2-5/32" |
F | 2-1/8" |
H-11475 | Box Quantity |
1" | 15 |
*Nominal
Optional Equipment:
H-11199 Relubricating Tool
Used to relubricate Mueller Luboseal Meter Valves with H-853 lubricant shown below. A hex wrench is built into the tool handle for removal of valve lubricating port pipe plug. One tool fits all valve sizes.
H-853 Ground Key Lubricant
Used for dry, natural or manufactured gas, air and vacuum applications. NOT recommended for petroleum solvents, mineral oils or concentrated acids or alkalies. Box of 24 #1 sticks.
529195 Wrench
Used to remove tamper-proof by pass plugs on all Brisco By pass Meter Valves.
