Mueller® H-17017 NO-BLO® Valve Changer for 3/4" SHUR-STOP™ meter valves on sch. 40 steel.
Catalog number: H-17017
Features:
- For changing out 3/4" meter valves installed on 1/2" schedule 40 steel pipe
- Includes one plugging unit, safety clamp (682597), wooden storage chest (680350) and operating instructions (Form 8540)
- Fits most roundway and straightway valves
- O-ring sealed body and stem
- Maximum working pressure 60 psig** (414 kPa)
Demonstration Video
Dimensions:
The H-17017 plugging units can be used on valves (roundway or straightway) that have minimum port dimensions charted to the right, and if the outlet of the valve has F.I.P. threads.
ValveSize* | Minimum Port Width | Minimum Port Height |
3/4" | 13/32" | 23/32" |
Size* of Plugging Unit | 1/2" x 3/4" |
Plugging unit part number | 01701010 – 250 |
a length of rubber plug | 2" |
B length from ferrule shoulder to taper | 12-9/16" |

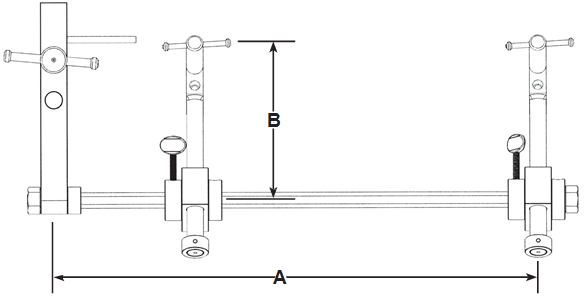

Safety Clamp:
Safety Clamp Part Number | A | B |
682597 | 20" | 6-1/2" |
*nominal

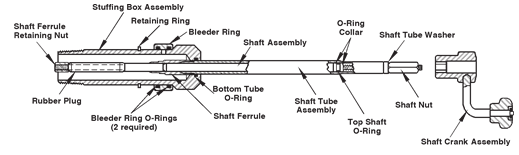

H-17017 Valve Changer Replacement Parts:
Part Name | Plugging Unit Size* |
1/2" x 3/4" | |
Plugging Unit Complete | 01701010 – 250 |
Stuffing Box assembly | 681582 |
Bottom Tube O-ring | 79514 |
Retaining Ring | 53777 |
Bleeder Ring | 50936 |
Bleeder O-ring (2) | 40709 |
Shaft Crank Assembly | 83276 |
Shaft Nut | 51134 |
Shaft Tube Washer | 51159 |
Top Shaft O-ring | 53856 |
Shaft Tube Assembly | 89259 |
Shaft Assembly | 83815 |
Rubber Plug | 503466 |
Shaft Ferrule | 503465 |
Shaft Ferrule Retaining Nut | 52969 |
Part Name | Qty Req'd | Part Number |
Safety Clamp Complete |
| 682597 |
Pivot Sleeve | 2 | 537866 |
Set Screw | 2 | 97763 |
Pivot Coupling | 2 | 537865 (Pivot coupling) |
Shaft Tube Clamp Arm Assembly (2) | 2 | 682854 |
Clamp Bar | 1 | 682598 |
Pipe Clamp Assembly | 1 | 83977 |
Short Locating Pin (2.875" length) | 1 | 501282 |
Long Locating Pin (4.375" length) | 1 | 501283 |
Thumb Screw | 2 | 95297 |
Hex Nut | 2 | 94825 |
