Mueller® H-17016 NO-BLO® Valve Changer for 3/4" & 1" meter valves on 1/2" CTS PE risers.
Catalog number: H-17016
Features:
- For changing out 3/4"or 1" meter valves installed on 1/2" CTS PE Risers
- O-ring sealed body and stem
- Maximum working pressure 60 psig** (414 kPa)
- Used with Safety clamp 682597 (order separately)***
*** Safety clamp is required but must be purchased separately.
Demonstration Video
Dimensions:
The H-17016 unit can be used on valves (roundway or straightway) that have minimum port dimensions charted to the right, and if the outlet of the valve has F.I.P. threads.
Valve Size* | Minimum Port Width | Minimum Port Height |
3/4" | 13/32" | 23/32" |
1" | 13/32" | 23/32" |
Size* of Plugging Unit | 1/2" x 3/4" | 1/2" x 1" |
a length of Rubber Plug | 1-1/2" | 1-1/2" |
B length From Ferrule Shoulder to taper | 12-9/16" | 12-9/16" |

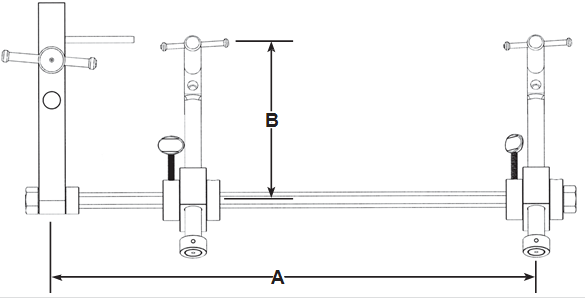

Safety Clamp:
Safety Clamp Part Number | A | B |
682597 | 20" | 6-1/2" |
** This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.
*** Safety clamp is required but must be purchased separately.

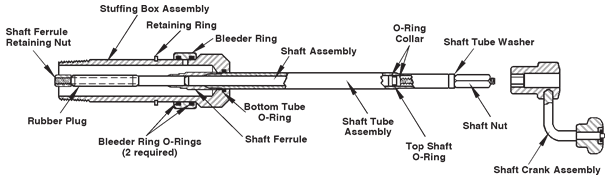

H-17016 Valve Changer Replacement Parts:
Part Name | Plugging Unit Size* | |
1/2" x 3/4"** | 1/2" x 1"** | |
Plugging Unit Complete | H-17016 - 163 | H-17016 - 164 |
Stuffing Box assembly (includes 4 items below) | 681219 | 681299 |
Bottom Tube O-ring | 79514 | 79514 |
Retaining Ring | 53777 | 50990 |
Bleeder ring | 50936 | 50947 |
Bleeder O-ring (2) | 40709 | 79351 |
Shaft Crank Assembly | 83276 | 83276 |
Shaft Nut | 509757 | 509757 |
Shaft Tube Washer | 51159 | 51159 |
Top Shaft O-ring | 53856 | 53856 |
Shaft Tube Assembly | 681301 | 681301 |
Shaft Assembly | 681300 | 681300 |
Rubber Plug | 509786 | 509786 |
Shaft Ferrule Retaining Nut | 509665 | 509665 |

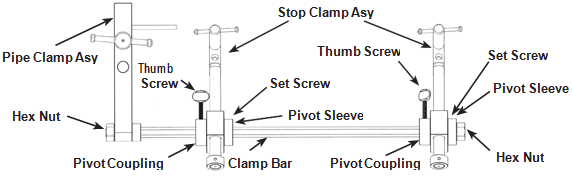

Part Name | Qty Req'd | Part Number |
Safety Clamp Complete |
| 682597 |
Pivot Sleeve | 2 | 537866 |
Set Screw | 2 | 97763 |
Pivot Coupling | 2 | 537865 (Pivot Coupling) |
Shaft Tube Clamp Arm Assembly (2) | 2 | 682854 |
Clamp Bar | 1 | 682598 |
Pipe Clamp Assembly | 1 | 83977 |
Short Locating Pin (2.875" length) | 1 | 501282 |
Long Locating Pin (4.375" length) | 1 | 501283 |
Thumb Screw | 2 | 95297 |
Hex Nut | 2 | 94825 |
**Second dimension number refers to meter size.
