Unit No. 4SW Completion Equipment
Unit No. 4SW Completion Equipment
Mueller® Unit No. 4SW Completion Equipment, inlcuding:
- Alignment Tool
- Mueller E-Z Release® Inserting Tool
- Extracting Tool
- Thread Cleaning Tool

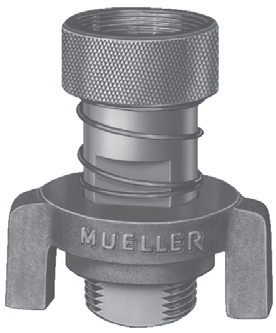

Alignment Tool
Alignment tools are used with the completion plug to align the line stopper machine and equipment with the installed line stopper fitting.
Size* | Tool Complete | Fork | Collar | Set Screw | Thumb Screw | Spring | Shank | Nut |
10" and 12" | 83250 | 53862 | 46695 | 98429 | 53857 | 46696 | 60326 | 46694 |

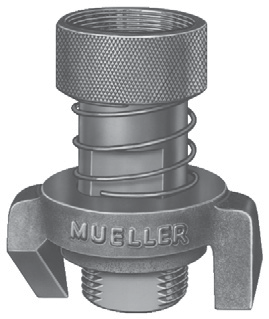

Mueller E-Z Release® Inserting Tool
Inserting tools are used to insert completion plugs in Mueller line stopper fittings under pressure.
Size* | Tool Complete | Fork | Collar | Set Screw | Spring | Shank | Nut |
10" and 12" | 83237 | 46697 | 46695 | 98429 | 46696 | 50024 | 46694 |

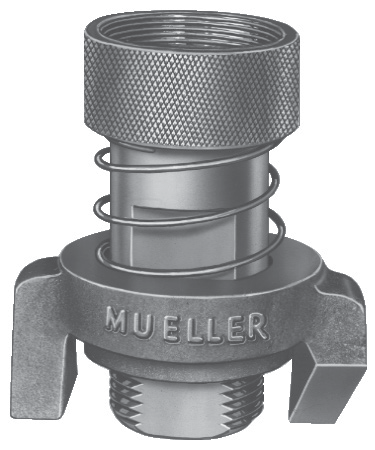

Extracting Tool
Extracting tools are used to remove completion plugs from Mueller line stopper fittings under pressure.
Size* | Tool Complete | Fork | Collar | Set Screw | Spring | Shank | Nut |
10" and 12" | 83238 | 46698 | 46695 | 98429 | 46696 | 50024 | 46694 |

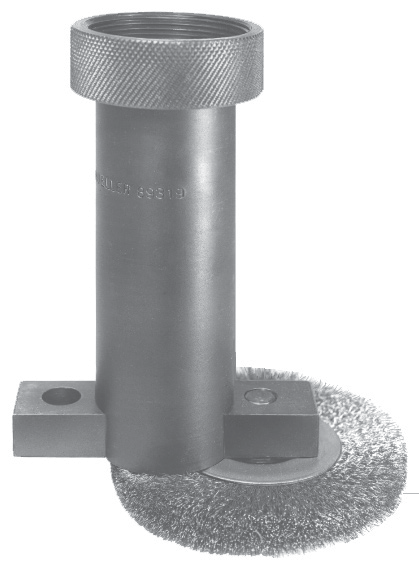

Thread Cleaning Tool
Thread cleaning tool is used to remove any pipe chips or other drilling debris from the completion plug threads in the fitting prior to installation of the completion plug.
Size* | Tool Complete | Shank | Washer | Hex Cap Screw | Brush | Spacer Bar | Bolt | Coupling Nut |
10" and 12" | 89321 | 503957 | 45556 | 98570 | 301919 | 503958 | 503955 | 46694 |
