Mueller® Unit No. 3SW Completion Equipment, inlcuding:
- Alignment Tool
- Mueller E-Z Release® Inserting Tool
- Extracting Tool
- Completion Plug Wrench
- Thread Cleaning Tool

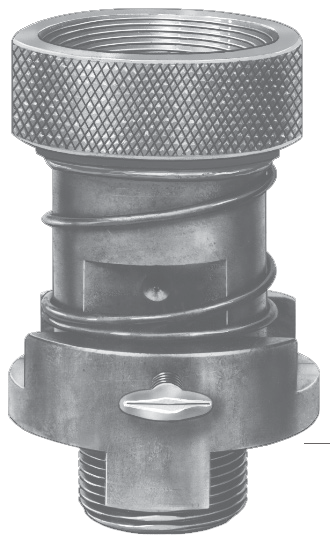

Alignment Tool
Alignment tools are used with the completion plug to align the line stopper machine and equipment with the installed line stopper fitting, flanged tee or Save-A-Valve® Drilling Nipples.
Size* | Tool Complete | Fork | Collar | Set Screw | Set Screw | Spring | Shank | Nut |
4" | 83774 | 53858 | 500038 | 97970 | 53857 | 46696 | 500036 | 46694 |
6" and 8" | 83250 | 53862 | 46695 | 98429 | 53857 | 46696 | 60326 | 46694 |
Mueller E-Z Release® Inserting Tool
Inserting tools are used to insert completion plugs in Mueller line stopper fittings, flanged tee or Save-A-Valve® Drilling Nipples under pressure.
Size* | Tool Complete | Fork | Collar | Set Screw | Spring | Shank | Nut |
4" | 83772 | 53509 | 500038 | 97970 | 46696 | 500037 | 46694 |
6" and 8" | 83237 | 46697 | 46695 | 98429 | 46696 | 50024 | 46694 |

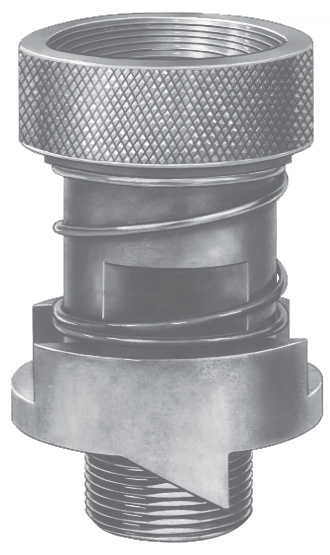

Extracting Tool
Extracting tools are used to remove completion plugs from Mueller line stopper fittings, flanged tee or Save-A-Valve® Drilling Nipples under pressure.
Size* | Tool Complete | Fork | Collar | Set Screw | Spring | Shank | Nut |
4" | 83773 | 53508 | 500038 | 97970 | 46696 | 500037 | 46694 |
6" and 8" | 83238 | 46698 | 46695 | 98429 | 46696 | 50024 | 46694 |
Completion Plug Wrench
Completion plug wrench is used to “final” tighten the completion plug before the completion lid is attached and is also used to “break” the plug loose prior to removal using the extracting tool.
Size* | Tool Complete |
4" | 36404 |
6" and 8" | 36424 |

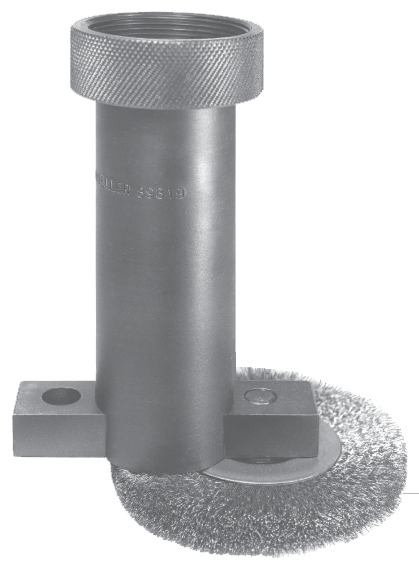

Thread Cleaning Tool
Thread cleaning tool is used to remove any pipe chips or other drilling debris from the completion plug threads in the fitting prior to installation of the completion plug.
Size* | Tool Complete | Shank | Washer | Hex Cap Screw | Brush | Spacer Bar | Bolt | Coupling Nut |
4" | 680360 | 503959 | 45556 | 98570 | 301919 | 503954 | 503955 | 46694 |
6" and 8" | 89319 | 503957 | 45556 | 98570 | 301919 | 503956 | 503955 | 46694 |
