Small Drilling & Stopping Machine Control Valves

public://uploads/wysiwyg/valves-main.png

Small Drilling & Stopping Machine Control Valves

Small Drilling & Stopping Machine Control Valves.

_
Catalog PDF

Bronze Gate Valve – 125 psig (862kPa) maximum working pressure at 100 F (38 C):
H-10914 – Bronze gate valve


Sizes
1-1/4"1-1/2"2"2-1/2"3"
Lay Length (face to face)
2.75”2.812”3.375”4.812”4.625”
Center Line of Valve to End of Handle
5.22”6.25”7.06”8.41”10”

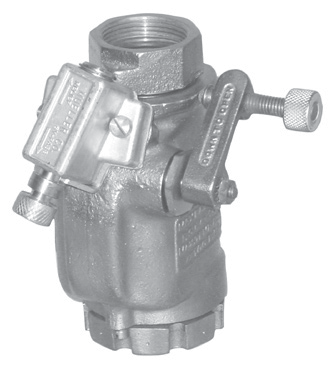

Control Chamber - 125 psig (862 kPa) maximum working pressure at 100 F (38 C):
H-17025 – Control Chamber connects directly to E Series machines and is used on steel tees. It has a bypass/equalizing valve feature, and comes complete with 1”, 1-1/4” and 1-1/2” adapter bushings.




Control chamber adaptor bushings

1/2"

3/4”

1”

1-1/4”

1-1/2”

503080

502232

78829

78830

78831




Spanner Wrench:
44628 – Spanner Wrench for use with H-17025 Control Chamber adapter bushings.




Slide Gate Valve - 275 psig (1896 kPa) maximum working pressure at 100 F (38 C):
H-10917 –H-10917 – Slide gate valve with aluminum body, O-ring sealed steel slide gate and by-pass/equalizing valve is a low profile, quick acting control valve.


Sizes

2"

2-1/2”

3”

4”



O-Ring Kits
2"2-1/2”3”4”
313111313112313113313114

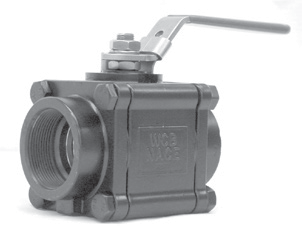

Steel Ball Valve - 2000 psig (13790 kPa) maximum working pressure at 100 F (38 C):
H-10918 – High pressure ball valve for use during No-Blo® tapping and stopping operations. This quarter-turn forged steel valve is available in 1-1/4", 1-1/2", 2", 2-1/2" and 3" sizes.

Sizes

1-1/4"

1-1/2"

2"

2-1/2"

3"

Lay Length (face to face)
4.37”4.72”5.53”7.27”8.02”
Center Line of Valve to End of Handle
5.91”6.85”6.85”8.84”13.74”



Repair/gasket replacement kits

1-1/4"

1-1/2"

2"

2-1/2"

3"

682626

682627

682628

682629

682630



Replacement Ball

1-1/4"

1-1/2"

2"

2-1/2"

3"

312897

312896

312895

312894

312893
