  5. H-17045

H-17045

public://uploads/wysiwyg/H-17045-main.png

H-17045

Mueller® H-17045 Machine.

Catalog number: H-17045

Specifications:

  • Used to install or remove Completion Plugs, Stems And Bushings in 3/4" to 1- 1/2"
  • Tees, Save-A-Valve® Drilling Nipples and Line Stopper Fittings
  • 8-1/4" (209 mm) boring bar travel
  • 125 psig (862 kPa) maximum working pressure at 100 F (38 C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling operation has amaximum working pressure or temperature rating less than that specified above.

_
Catalog PDF          Manual





Demonstration Video

MUELLER® NO-BLO® Operations performed by the MUELLER® H-17045 Machine:

Item

Size*

Mueller NO-BLO Operation

Mueller NO-BLO Service Tees

3/4"

1"

1-1/4"

-

Insert or extract completion plug

Mueller NO-BLO Service Stop Tees

3/4"

1"

-

-

Insert or extract stem and bushing

Mueller NO-BLO Curb Stop Tees

3/4"

1"

1-1/4"

-

Insert or extract stem

Mueller NO-BLO Steel Valves

-

1"

-

-

Insert or extract stem

Mueller NO-BLO Service Line Stopper Fittings

3/4"

1"

1-1/4"

-

Insert or extract completion plug

Mueller Save-A-Valve Drilling Nipples

3/4"

1"

1-1/4"

1-1/2"

Insert or extract completion plug

*The size of Mueller NO-BLO Tee, as used in this table, refers to the size of the inlet. The size of Mueller Steel Valves, and Service Line Stopper Fittings refers to the nominal size of these items.

Equipment furnished with each H-17045 Machine:

  • 1-1/4" Machine Adapter Nipple (36733)
  • 1-1/2" Machine Adapter Nipple (33575)
  • Extracting Fork (78897)
  • Two Body Gaskets (47756)
  • Operating Instruction Manual (Form 8547)

Total shipping weight: 6 lbs.
Machine only weight: 2.5 lbs.

Item No.

Part No.

Part Name

1

56178

Screw

2

78853

Knob

3

80488

Handle Assembly

4

72239

O-ring

5

79181

Body

6

47756

Fiber Gasket

7

80492

Inserting Bar Assembly

8

78897

Fork

9

36733

"E" Machine X 1-1/4" M.I.P. Adapter

10

33575

"E" Machine X 1-1/2" M.I.P. Adapter

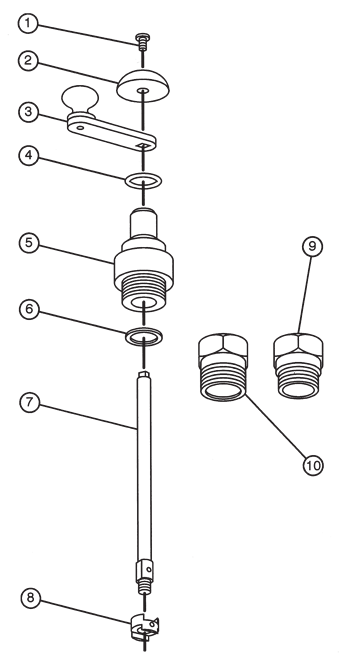

NOTE: These illustrations are for parts identification only.
DO NOT use these illustrations for assembly or disassembly of machine.
Contact Mueller Customer Service Center for details.
