C1-36-99002

public://uploads/wysiwyg/Machines-Drilling&StoppingMachines-C1-36_1_0.png

C1-36-99002

Mueller® C1-36-99002 Drilling Machine - for drilling operations under pressure - 1-1/2" to 12" inclusive.

Catalog number: C1-36-99002 (part number 39262) / 8:1 feed ratio

Specifications:

  • Hand or power operation
  • Designed for use on pressurized or unpressurized mains
  • Used to cut 1-1/2" to 12" holes
  • 36" (914 mm) boring bar travel
  • Use on cast iron pipe • ductile iron pipe • steel pipe
  • Will make cuts through line stopper fittings, flanged tees and nipples from 3" to 12"
  • 500 psig (3447 kPa) maximum working pressure at 100 F (38 C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF





Demonstration Video

Equipment furnished with each Mueller® C1-36-99002 Drilling Machine:

  • Wooden storage chest (680285 not shown)
  • Ratchet handle (85308)
  • T-handle Socket wrench (59839)
  • Four double open end wrenches (96536, 56680, 58196, & 55726)
  • Eight machine to adapter bolts and nuts (56682)
  • Eight D-type machine to adapter washers (55409)
  • Machine to adapter gasket (55449)
  • Cutting grease (88366)
  • Instruction manual (Form #8513)

Equipment to be selected:

  • Shell cutters, drills, pilot drills, cutter arbors, and cutter hubs
  • Machine adapters
  • Power operators
  • Optional: 10" long crank handle and lifting yoke (681520)

Total shipping weight: 424 lbs. (191 kg)
Machine only weight: 270 lbs. (120 kg)

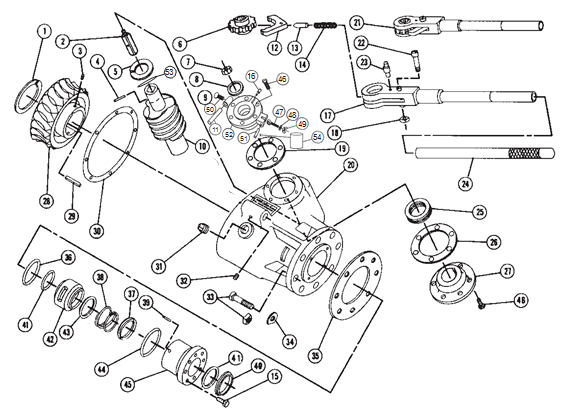

Item No.

Part Number

Part Name

Item No.

Part Number

Part Name

Item No.

Part Number

Part Name

1

54426

Thrust washer

17

80111

Handle

35

55449

Gasket

2

507160

Drive shaft

18

46255

Nut

36

508429

O-ring

3

90472

Sets crew

19

55467

Top bearing gasket

37

44245

Convex follower

4

507162

Rollpin

20

526512

Drive box

38

98000

Spring

5

54472

Thrust washer

21

85308

Ratchet complete

39

47092

Rollpin (2)

6

40137

Ratchet wheel

22

40138

Bolt

40

501158

Wiper ring

7

94825

Nut

23

40139

Stud

41

508430

O-ring (2)

8

78827

O-ring

24

86391

Handle extension

42

508427

Spacer

9

580815

Top bearing complete (includes: 8,11,16,46,47,48,

49,50,51,52)

25

55541

Ballbearing

43

45115

Packing ring (4)

26

55478

Bottom bearing gasket

44

52162

Gland seal o-ring

27

54443

Bottom bearing

45

501151

Packing gland

10

507161

Worm

28

55563

Worm gear

46

55098

Socket head caps crew (6)

11

54488

Pivot

29

54467

Key

47

52389

Eyebolt

12

40004

Ratchet dog

30

55609

Gasket

48

54012

Washer

13

40006

Spring pin

31

64134

Plug

49

94341

Wing Nut

14

40007

Spring

32

98957

Set screw

50

91665

Thumb Screw

15

55098

Hex cap screw (4)

33

56682

Bolt and nut (8)

51

48131

Roll Pin

16

72484

Latch

34

55409

Washer (8)

52

502707

Bearing

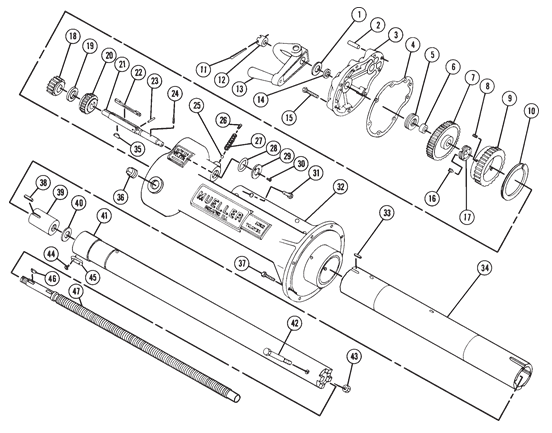

Item No.

Part Number

Part Name

Item No.

Part Number

Part Name

Item No.

Part Number

Part Name

1

508438

Thrust washer

17

54433

Lock nut

33

54466

Feed gear key

2

54545

Dowel pin

18

501074

Idler pinion

34

33923

Drive tube

3

508433

Rear cover

19

54471

Idlers pacer

35

300190

Key

4

33080

Rear cover gasket

20

55432

Idler pinion driver

36

64134

Plug

5

55569

Thrust bearing

21

54470

Idler shaft

37

55098

Cap screw

6

54630

Bushing

22

54469

Drive key

38

54445

Feed nut keys (2)

7

55567

Feed screw gear

23

63477

Drive key pin

39

33404

Feed nut

8

98873

Set screws (2)

24

54538

Indicator drive pin

40

54418

Feed nut washer

9

55564

Drive tube feed gear

25

54702

Ball detent

41

88331

Boring bar assembly

10

54425

Feed gear thrust washer

26

99022

Set screw

42

311866

Bolt

11

98928

Cotter pin

27

55610

Detent spring

43

58849

Nut

12

55601

Feed screw nut

28

508434

Idle roil seal

44

52182

Screws (4)

13

88150

Crank & hoisting yoke

29

508435

Oil seal retainer

45

54482

Keys (2)

14

311332

Oil seal O-ring

30

95257

Screws (2)

46

98225

Keys (2)

15

504333

Screw

31

92375

Screws (4)

47

43964

Feed screw

16

98956

Set screws (2)

32

88481

Torque tube assembly (w/ bushings)



89346

Lubricant

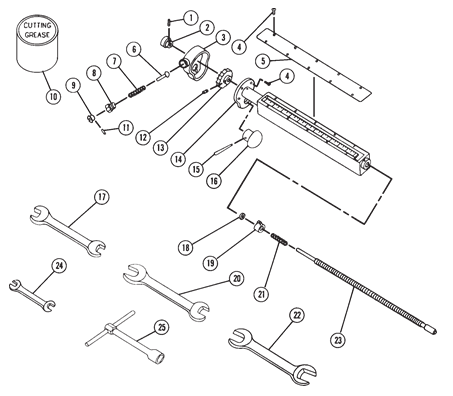

Item No.

Part Number

Part Name

Item No.

Part Number

Part Name

Item No.

Part Number

Part Name

1

99023

Knob sets crew

10

88366

Cutting grease

19

501073

Indicator nut

2

54551

Indicator knob

11

56392

Pin

20

58196

Wrench

3

54446

Cover plate

12

97763

Wheel set screw

21

33083

Spring

4

37804

Screws (14)

13

54523

Wheel

22

55726

Wrench

5

33084

Indicator shield

14

54516

Indicator body

23

501077

Indicator screw

6

36361

Plunger

15

53747

Crank rollpin

24

96536

Wrench

7

36362

Spring

16

54454

Knob

25

59839

Socket wrench

8

36360

Body

17

56680

Wrench



9

36359

Detent knob

18

54549

Thrust washer

NOTE: These illustrations are for parts identification only. DO NOT use these illustrations for assembly or disassembly of machine. Mueller Co. offers a machine repair service, and field tapping service. Contact Mueller Customer Service Center for details.
