H-17346

public://uploads/wysiwyg/Machines-Drilling_StoppingMachines-H-17346-Unit-No-3SW.png

H-17346

Mueller® H-17346 Unit No. 3SW Completion Machine

Catalog number: H-17346

Specifications:

  • Hand operation
  • Used to align, insert and extract 4", 6", and 8" Completion Plugs in Line Stopper Fittings, Flanged Service Tees and Save-A-Valve® Drilling Nipples
  • Used in conjunction with Control Valve – 9-1/4" Gate Valve (83953)
  • Comes in Wooden Storage Chest (304772)
  • Includes Operating Instruction Manual (Form 8834)
  • Completion Plug Wrench (36424) included
  • Balanced pressure feature
  • 275 psig (1898 kPa) maximum working pressure at 100F (38C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the plug alignment, plug inserting or plug extracting operation has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF





Demonstration Video

MUELLER NO-BLO® Operations performed by the MUELLER H-17346 Completion Machine:

Item

Size* of Fitting

Mueller NO-BLO Operation

Mueller Line Stopper Fittings

4"

6"

8"



Align, insert and extract completion plug

Mueller Flanged Tees

4"

6"

8"

Mueller Save-A-Valve Drilling Nipples

4"

6"

8"

*Nominal size

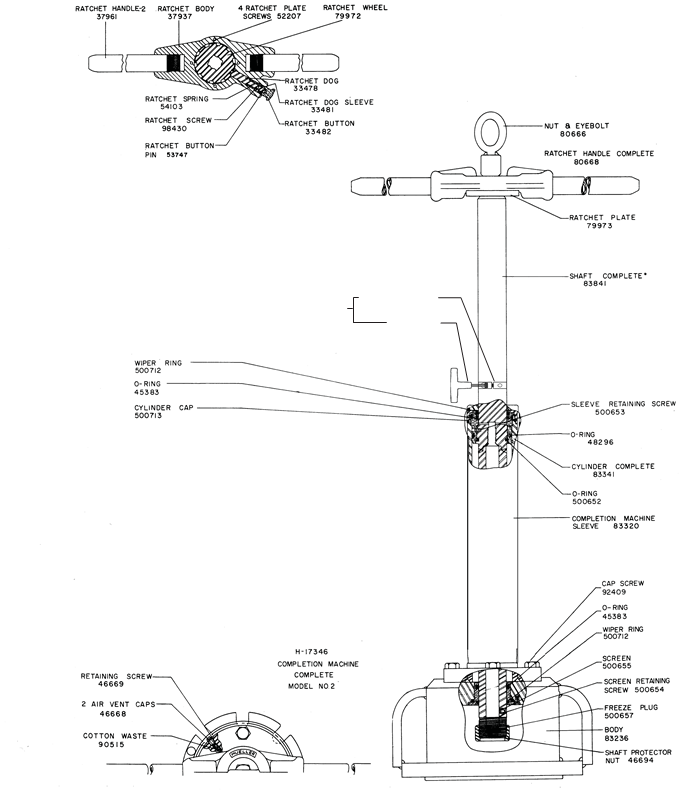

NOTE: These illustrations are for parts identification only. DO NOT use these illustrations for assembly or disassembly of machine. Mueller Co. offers a machine repair service. Contact Mueller Customer Service Center for details.
