H-17235

public://uploads/wysiwyg/H-17235-main.png

H-17235

Mueller® H-17235 (Unit No. 2) Stopping Machine
(shown with 88611 Gate Valve, purchased separately).

Catalog number: H-17235

Specifications:

  • Hand operation
  • Used to stop-off 3" and 4" line stopper fittings and flanged service tees
  • Body has integral 1-1/4" F.I.P. thread bypass connection
  • Has feed yoke locking mechanism for safe and positive operation
  • Used in conjunction with control valve – 5" gate valve (88611)
  • Comes in compact wooden storage chest (302550)
  • Includes operating instruction manual (Form 8524)
  • 100 psig (690 kPa) maximum working pressure at 100F (38C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling, stopping or completion operations has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF





Demonstration Video

MUELLER NO-BLO® Operations performed by the MUELLER H-17235 Stopping Machine:

Item

Size* of fitting

Mueller NO-BLO Operation

Mueller Line Stopper Fittings

3"

4"

Stop off fitting

Mueller Flanged Tees

3"

4"

Stop off tee

*Nominal size

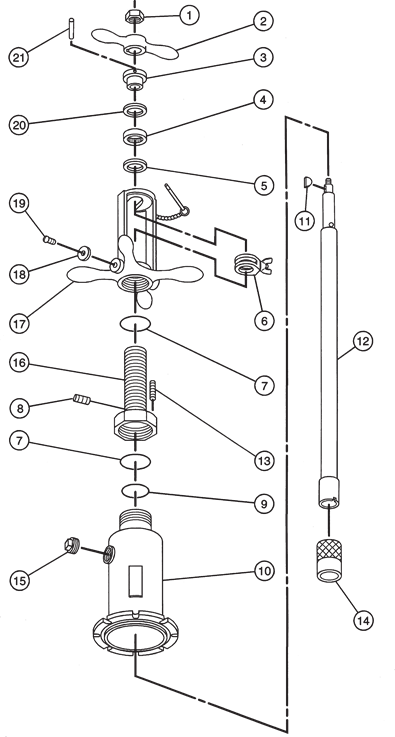

Item No.

Part Number

Part Name (quantity)

1

52178

Nut

2

36437

Handle

3

36434

Retaining collar

4

36436

Thrust bearing

5

36433

Thrust collar

6

83544

Clamping collar assembly

7

51458

O-ring (2)

8

41435

Plug

9

78827

O-ring

10

81440

Body

11

98941

Key

12

36423

Inserting bar

13

92926

Set screw

14

36432

Coupler sleeve

15

51263

Plug

16

501680

Feed sleeve

17

88607

Feed nut and yoke assembly (includes 18 and 19)

36426

Feed nut only

36427

Yoke only

36444

Pin only

48610

Ring only

504225

Chain only

94005

Rivet only

18

50133

Washer (2)

19

79745

Sems fastener (2)

20

36483

Bearing collar

21

503715

Retaining pin

Items not shown



302550

Wooden storage chest



F8524

Operating instruction manual

NOTE: These illustrations are for parts identification only. DO NOT use these illustrations for assembly or disassembly of machine. Mueller Co. offers a machine repair service, and field tapping service. Contact Mueller Customer Service Center for details.
