Mueller® H-17145 Machine.

Catalog number: H-17145

Specifications:

  • Hand operation
  • Used to install or remove Completion Plugs, Stems And Bushings in 1/2" to 3" Service Stop and Curb Stop Tees, Steel Valves and Save-A-Valve® Drilling Nipples
  • Balanced pressure feature. Refer to machine operating manual for important precautions.
  • Integral pressure relief valve
  • 8-1/4" (209 mm) inserting bar travel
  • 1200 psig (8273 kPa) maximum working pressure at 100 F (38 C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF





Demonstration Video

MUELLER® NO-BLO® Operations performed by the MUELLER® H-17145 Machine:

Item

Size*

Mueller NO-BLO Operation

Mueller NO-BLO ServiceTees

3/4"

1"

1-1/4"

1-1/2"

2"

-

-

Insertor extract completionplug

Mueller NO-BLO Service StopTees

1/2"

3/4"

1"

1-1/4"

2"

-

-

Insert or extract stem and bushing

Mueller NO-BLO Curb StopTees

-

-

1"

1-1/4"

2"

-

-

Insertor extract stem

Mueller NO-BLO Steel Valves

-

1"

-

-

-

-

-

Insertor extract stem

Mueller Save-A-Valve

Drilling Nipples

3/4"

1"

1-1/4"

1-1/2"

2"

2-1/2"

3"

Insertor extract completion plug

*The size of Mueller NO-BLO Tees, as used in this table,refers to the size of the inlet. The size of Mueller Steel Valves, Service Line Stopper Fittings, Low Pressure Line Stopper Fittings and Save-A-Valve Drilling Nipples refers to the nominal size.

Equipment furnished with each H-17145 Machine:

  • Wooden Storage Chest (97408)
  • Body Gasket (33278)
  • Reversible Ratchet Handle (83409)
  • Operating Instruction Manual (Form 8833)
  • Machine uses D-series machine adapter nipples
  • Machine uses E-series inserting/extracting tools

Total shipping weight: 17 lbs.
Machine only weight: 13 lbs.

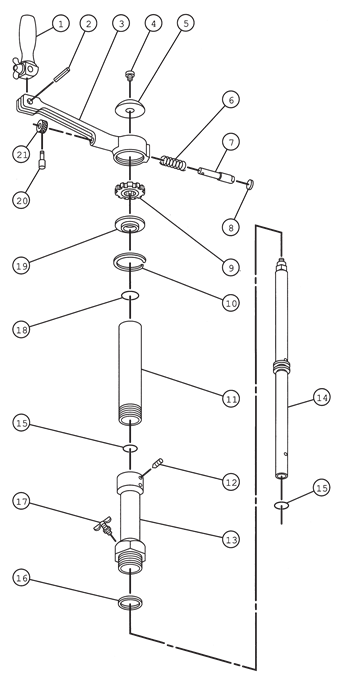

Item No.

Part No.

Part Name

1

54459

Crank Handle

2

500635

Pin

3

51484

Handle

4

56178

Knob Screw

5

78853

Knob

6

37883

Spring

7

51426

Ratchet Dog

8

51427

Freeze Plug

9

33390

Ratchet Wheel

10

51428

Retaining Ring

11

40872

Cylinder

12

96993

Cylinder Set Screw

13

40873

Body

14

40871

Shaft

15

79350

O-ring

16

33278

Body Gasket

17

40870

Bleeder Valve

18

79345

Cylinder O-ring

19

51482

Bushing

20

500803

Operating Pin

21

37863

Detent Knob

Wooden Storage Chest 97408 (not illustrated)

NOTE: These illustrations are for parts identification only.
DO NOT use these illustrations for assembly or disassembly of machine.
Contact Mueller Customer Service Center for assistance.
