H-17040

public://uploads/wysiwyg/Machines-Drilling_StoppingMachines-H-17040.png

H-17040

Mueller® H-17040 Machine

Catalog number: H-17040

Specifications:

  • Hand operation
  • Used to stop off 3/4", 1", and 1-1/4" service tees
  • 8-1/4" (209 mm) boring bar travel
  • Can only be used with H-10914 Bronze Gate Valve
  • 125 psig (862 kPa) maximum working pressure at 100 F (38 C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF





Demonstration Video

MUELLER® NO-BLO® Operations that can be performed:

Item

Size*

Mueller NO-BLO Operation

Mueller NO-BLO Service Tees

3/4"

1"

1-1/4"

Make stop-off

*The size of Mueller NO-BLO Tees, as used in this table,refers to the size of the inlet.

Total shipping weight: 3 lbs.
Machine only weight: 2.5 lbs.

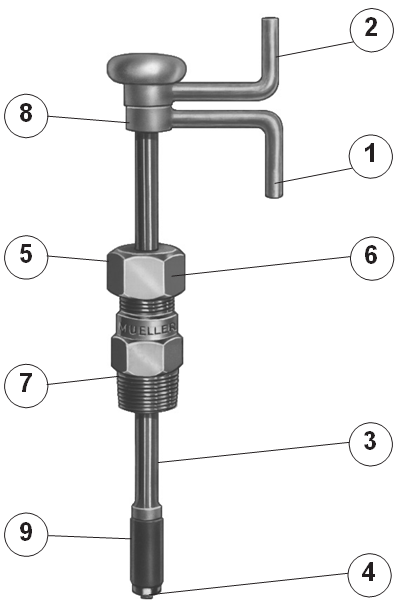

Item No.



Part Number

Size

3/4"

1"

1-1/4"

1

Handle

83442

83442

83442

2

Handle

83443

83443

83443

3

ShaftTube

83444

89636

89638

4

Shaft

83441

89635

89637

5

Packing Nut

79180

79180

79180

6

Packing

79232

79232

79232

7

Body

52236

504645

504649

8

Washer

73612

73612

73612

9

Rubber Plug

52218

500755

500759

H-10914 Bronze Gate Valve

1-1/4"

1-1/4"

1-1/2"

* 3/4” applications require the 036969 (1-1/4”x1”) reducing bushing on the top and
bottom side of the 1-1/4” valve.
