Mueller® Inserting & Extracting Tools for A3 & B-101-99007 drilling & stopping machines.
A3 Drilling & Stopping Machine Inserting & Extracting Tools
MUELLER E-Z Release® Inserting Tools are provided with a feature that allows the drilling and tapping machine to disengage the tee without backing the tee out of the main. E-Z Release Inserting Tools consist of two parts (a shank and a nut) which are joined by a coarse Acme thread. When the machine disengages the tee, the two parts of the inserting tool separate at the Acme thread. The part of the inserting tool left attached to the tee is easily removed once the tapping machine is removed from the main.

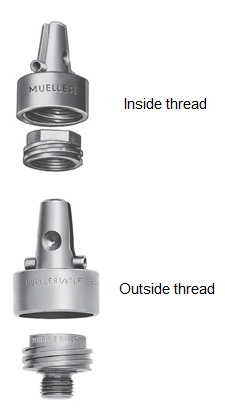

Screw plugs for machine inserted service stop tees:
Type | Size* | |||
1" | 1-1/4" | 2" | 2-1/2" | |
E-Z Release Screw Plug | 680596 | 680628 | 83066 | 83157 |
Inside I.P. Thread | - | 680597 | - | - |
Screw Plug Outside I.P.Thread | 680632 | 61212 | 61214 | - |

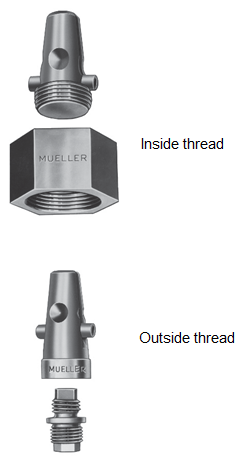

Extracting tools for service stop tees:
Type | Size* | |||
1" | 1-1/4" | 2" | 2-1/2 | |
Extracting Tool - Inside I.P. Thread | 680620 | 680621 | 83180 | - |
Extracting Tool - Outside I.P. Thread | 680639 | - | - | -
|
Inserting and extracting Tools for H-10037-99004 plugs:
Type | Size* |
| |||
1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | |
Inserting Tool - Outside Thread | 680644 | 680644 | 680645 | 680645 | 680645 |
Extracting Tool - Outside Thread | 680641 | 680641 | 680642 | 680642 | - |
