H-17860

Mueller® NO-BLO® H-17860 Curb Stop Tee.

Catalog number: H-17860

Features:

  • M.I.P. x extended weld - 1440 psig
  • Sizes* – 1-1/4" x 1-1/4"
  • Forged Steel Body ASTM A105
  • Steel Completion Cap AISI 12L14
  • Stainless Steel Stem
  • External (M.I.P.) thread inlet
  • Extended outlet prepared for butt weld same size as outlet and can also be used to attach compression coupling
  • 1440** psig (9930 kPa)
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments. Refer to charts on following pages.

_
Catalog PDF





How to select equipment:

  1. Find chart on following pages containing desired combination of fitting and installation machine (shown in bold type at top of each page and chart). Note: for a given fitting there may be more than one machine and chart.
  2. Under inlet size of fitting to be installed, select catalog number for type of control valve to be used. Options may include one or more of the following: H-10914 Bronze Gate Valve, H-17025 Control Chamber, H-10917 Slide Gate Valve, H-10918 Steel Ball Valve.
  3. Under selected control valve, column lists equipment necessary for each operation on chosen size of fitting. Note: MAOP (Maximum Allowed Operating Pressure) provided for each operation must not be exceeded. MAOP may be differ- ent for each operation.

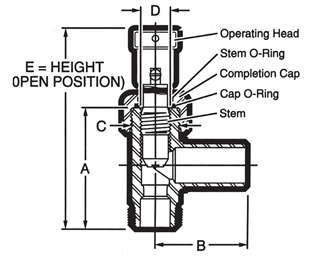

Dimensions:

Dimensions

Size* of Curb Stop Tee

1-1/4" x 1-1/4"

A

4-3/8"

B

3-1/2"

C

1-1/2"

D

1-1/4"

E

8-1/8"




Replacement Parts:

Replacementparts

Size* of Curb Stop Tee

1-1/4" x 1-1/4"

Completion Cap

79348

Stem

503984

Operating Head

79346

Stem O-ring

79350

Cap O-ring

79351

Completion Cap Screw

504550

*First size is size of inlet, second is size of outlet.

E-5™/EH-5™ Machine

H-17860

1-1/4"

1-1/4"

1-1/4"

Control Valve

H-10914  1-1/2"

H-17025

H-10918  1-1/2"

Bushing

-

78831   1-1/2"

-

Installation

Test Cap

79161 CI/
537400 Steel

79161 CI/
537400 Steel

79161 CI/
​​​​​​​537400 Steel

Drilling

MAOP*

125 psig

125 psig

E-5 = 500 psig

EH-5 = 1200 psig

Power Operator

H-604

H-604

H-604

Machine Adapter

503435

501609

503435

Drill

61990  7/8"

61990  7/8"

61990  7/8"

Drill Holder

78736

61993

78736

Cutting Grease

88366

88366

88366

Honing Stone

682560

682560

682560

Inserting

MAOP*

125 psig

125 psig

E-5 = 500 psig

EH-5 = 1200 psig

Machine Adapter

503435

501609

503435

Inserting Tool

83261

83261

83261

Extracting

MAOP*

125 psig

125 psig

E-5 = 500 psig

EH-5 = 1200 psig

Machine Adapter

503435

501609

503435

Extracting Tool

80088

80088

80088

Optional Tools

Machine Adapter

503435

501609

503435

Reseating Reamer

72241

72241

72241

Holder for Reamer

78736

61993

78736

Boring Bar Extension

-

51364

-

D-5™/DH-5™ Machine

H-17860

1-1/4"

1-1/4"

Control Valve

H-10914  1-1/2"

H-10918  1-1/2"

Installation

Test Cap

79161 CI/
537400 Steel

79161 CI/
​​​​​​​537400 Steel

Drilling

MAOP*

125 psig

D-5 = 500 psig DH-5 = 1200

psig

Power Operator

H-604

H-604

Machine Adapter

36196

36196

Drill

61990  7/8"

61990  7/8"

Drill Holder

37032

37032

Cutting Grease

88366

88366

Honing Stone

682560

682560

Inserting

MAOP*

125 psig

D-5 = 500 psig DH-5 = 1200

psig

Machine Adapter

36196

36196

Inserting Tool

83261

83261

Boring Bar Adapter

36324

36324

Extracting

MAOP*

125 psig

D-5 = 500 psig DH-5 = 1200

psig

Machine Adapter

36196

36196

Extracting Tool

88286

88286

Optional Tools

Machine Adapter

36196

36196

Reseating Reamer

72241

72241

Holder for Reamer

37037

37037



*Maximum Allowable Operating Pressure
