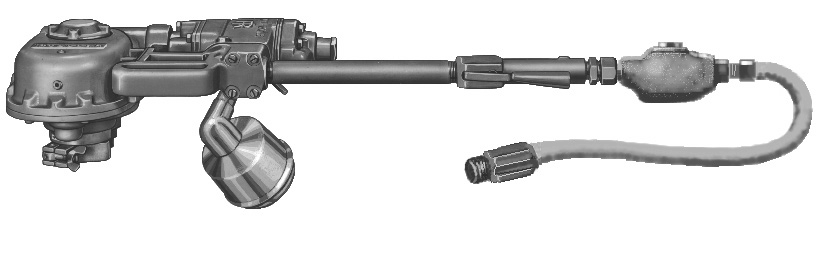

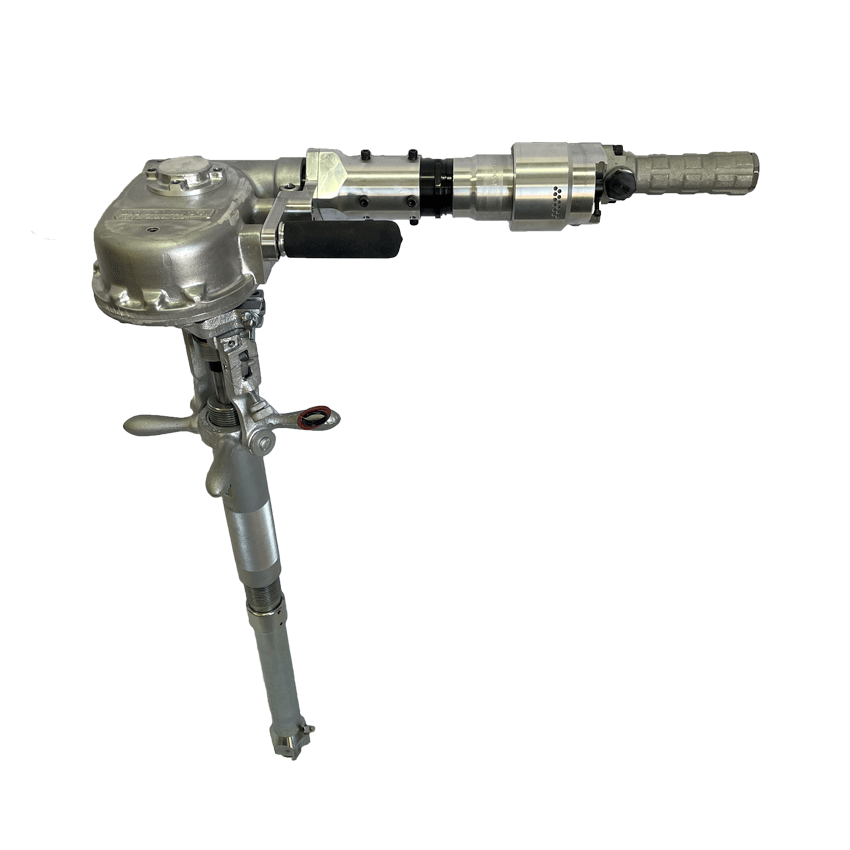

H-604 Air Power Operator

The compact, and lightweight H-604 Air Power Operator provides users with the ability to quickly perform drilling and tapping operations on a multitude of threaded Line Stopper Fittings, Tees, and CD&T applications.



  • Mounts directly to E-5™, EH-5™, D-5™,
  • DH-5™, A-3™, and B-101™ machines
  • Reversible air motor
  • Maximum free speed - 35 RPM
  • Air supply - 55 cubic feet of free air per minute at
  • 90 psig
  • Total shipping weight - 49 lbs.
  • Machine only weight - 40 lbs.
  • Shipped in a durable, lightweight polymer case
  • Motor includes in-line oiler (P/N 311817)
IMPORTANT: MAINTAIN PRESSURE OF 90 PSIG AT THE OPERATOR —THE USE OF A GAGE AT THE THROTTLE TO DETERMINE THE ACTUAL PRESSURE OF AIR AT THE POWER OPERATOR IS RECOMMENDED.
Flyer

H-704 Hydraulic Power Operator

  • Catalog number H-704
  • Use with E-5™, EH-5™, D-5™, DH-5™, A-3 & B-101
    drilling machines
  • Reversible operation
  • Removable handle for efficient storage
  • Preset safety relief valve prevents over-torque conditions
  • Flow Range — 7 to 9 gpm (27-34 lpm)
  • Motor Speed — 33 rpm at 8 gpm (30 lpm)
  • Maximum Pressure (continuous) — 2000 psig (138 bar)
  • Maximum Pressure (intermittent) — 2750 psig (190 bar)
  • Total Shipping Weight — 73 lbs (33 kg)
  • Machine Only Weight — 52 lbs (24 kg)
