H-17342

public://uploads/wysiwyg/Machines-Drilling&StoppingMachines-H-17342-Unit-No-3SW-500.png

H-17342

Mueller® H-17342 Unit No. 3SW-500 Stopping Machine.

Catalog number: H-17342

Specifications:

  • Hand operation
  • Used to stop-off 4", 6" and 8" Line Stopper Fittings and Flanged Service Tees
  • Body has integral 2" F.I.P. thread bypass connection
  • Used in conjunction with Control Valve – 9-1/4" Gate Valve (83721)
  • Come in Wooden Storage Case (304673)
  • Includes Operating Instruction Manual (Form 9067)
  • 500 psig (3450 kPa) maximum working pressure at 100F (38C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling, stopping or completion operations has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF





Demonstration Video

MUELLER NO-BLO® Operations performed by the MUELLER H-17342 Stopping Machine:

Item

Size* of Fitting

Mueller NO-BLO Operation

Mueller Line Stopper Fittings

4"

6"

8"

Stop off fitting

Mueller Flanged Tees

4"

6"

8"

Stop off tee

*Nominal size

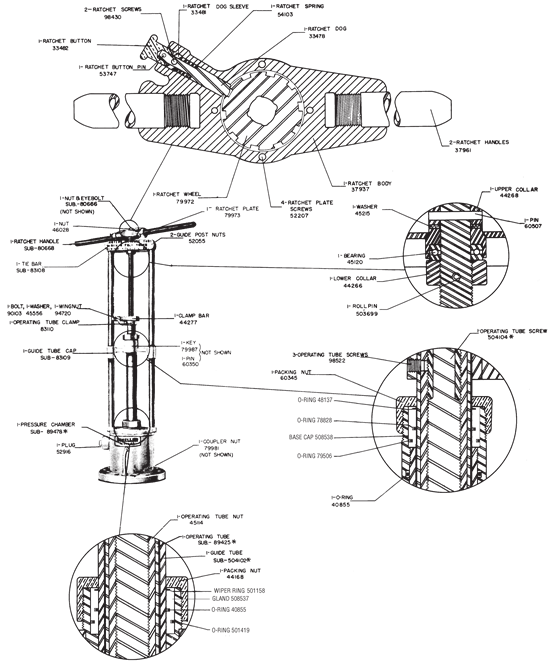

NOTE: These illustrations are for parts identification only. DO NOT use these illustrations for assembly or disassembly of machine. Mueller Co. offers a machine repair service. Contact Mueller Customer Service Center for details.
